The whole machine has SSB/CW/AM three modes and extra WFM (88~108MHz) receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19 digital adapter (optional), it can be easily connected to the computer and complete FT8 communication.

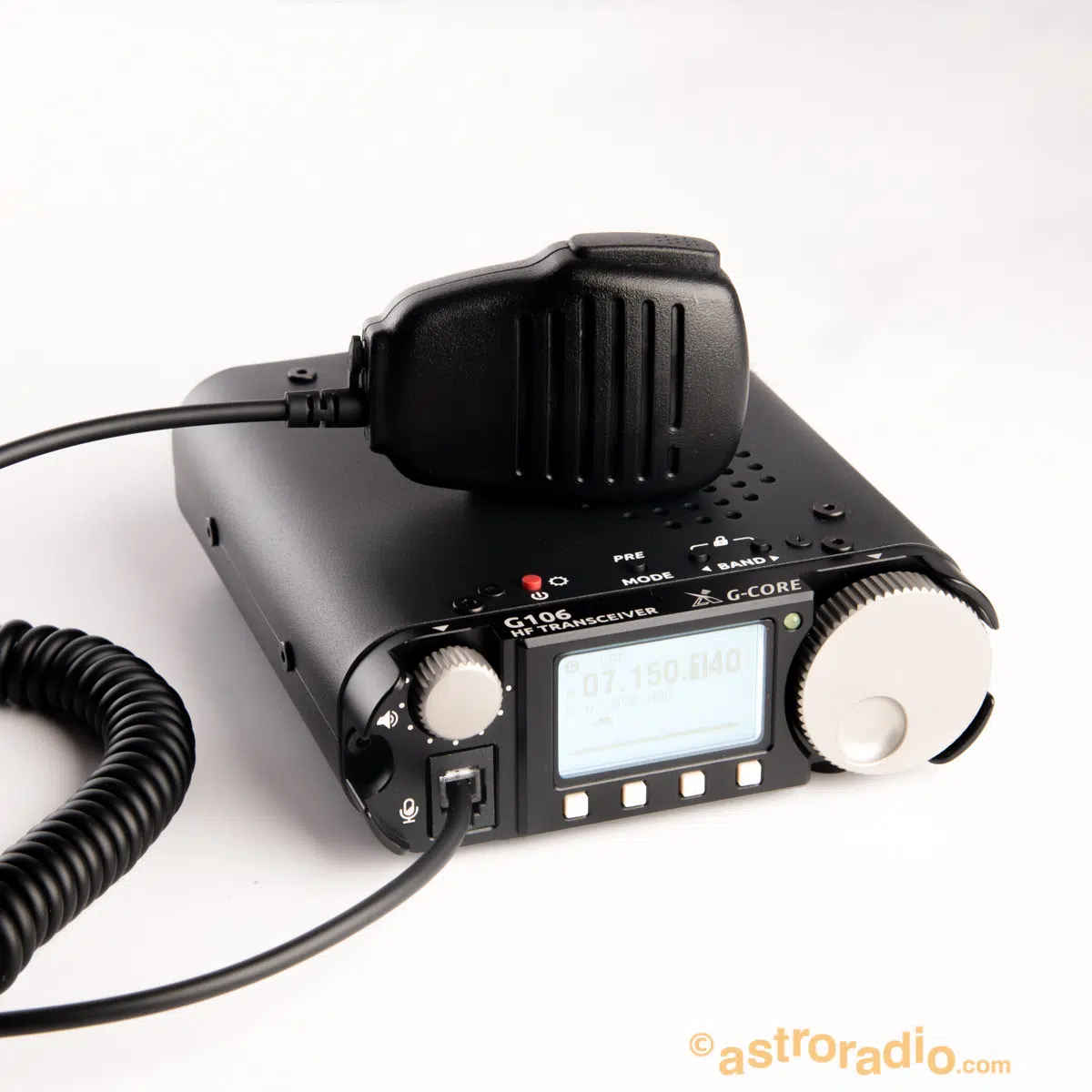

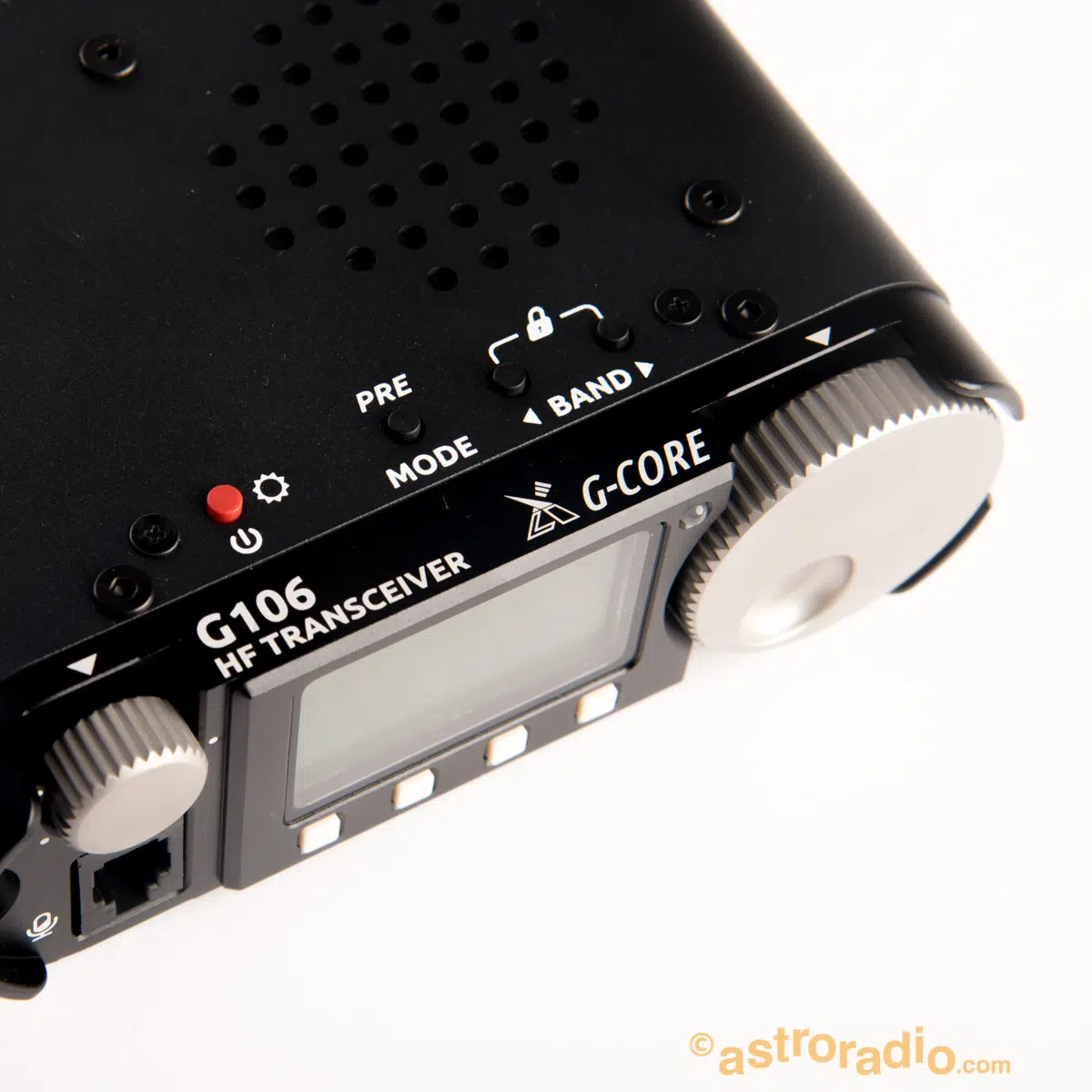

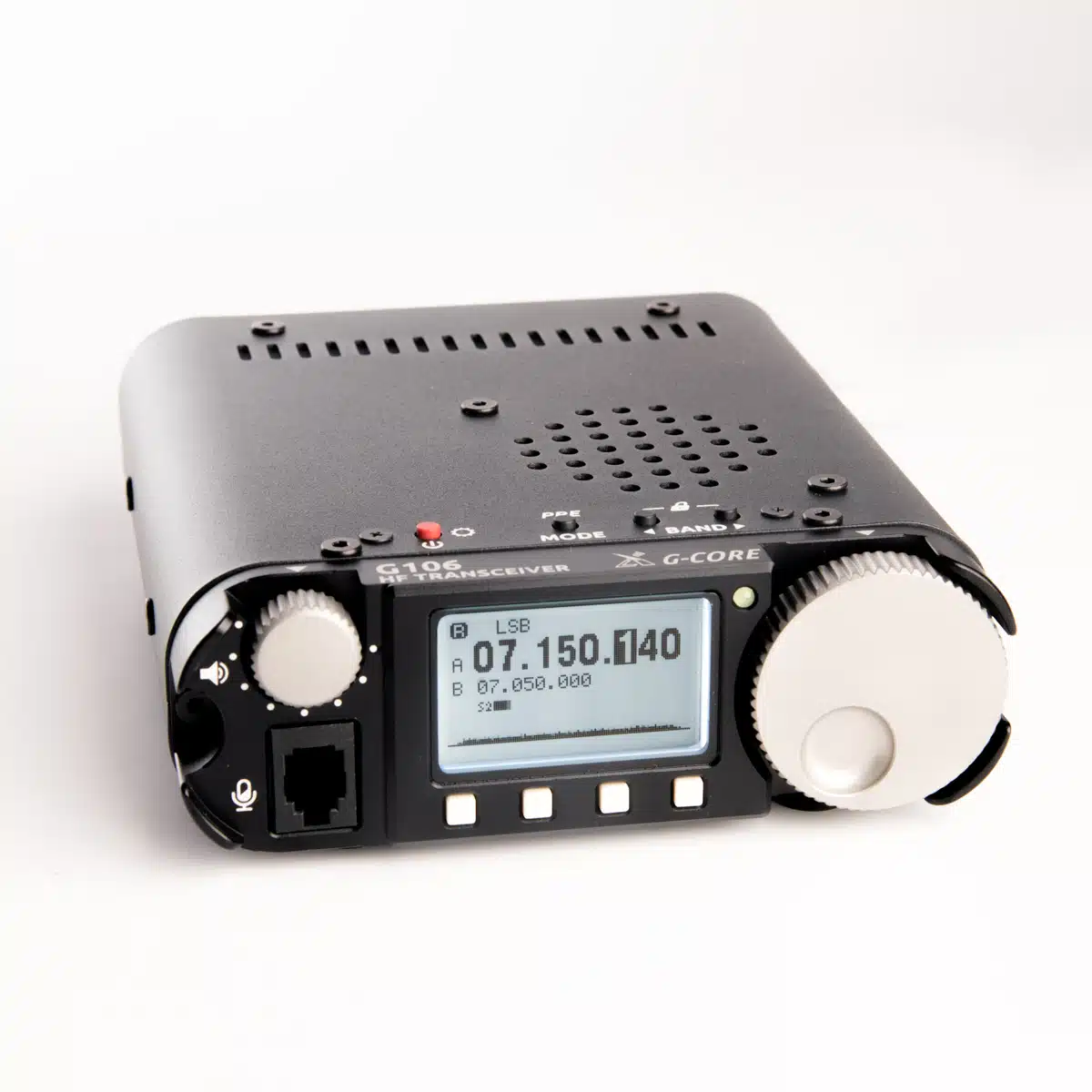

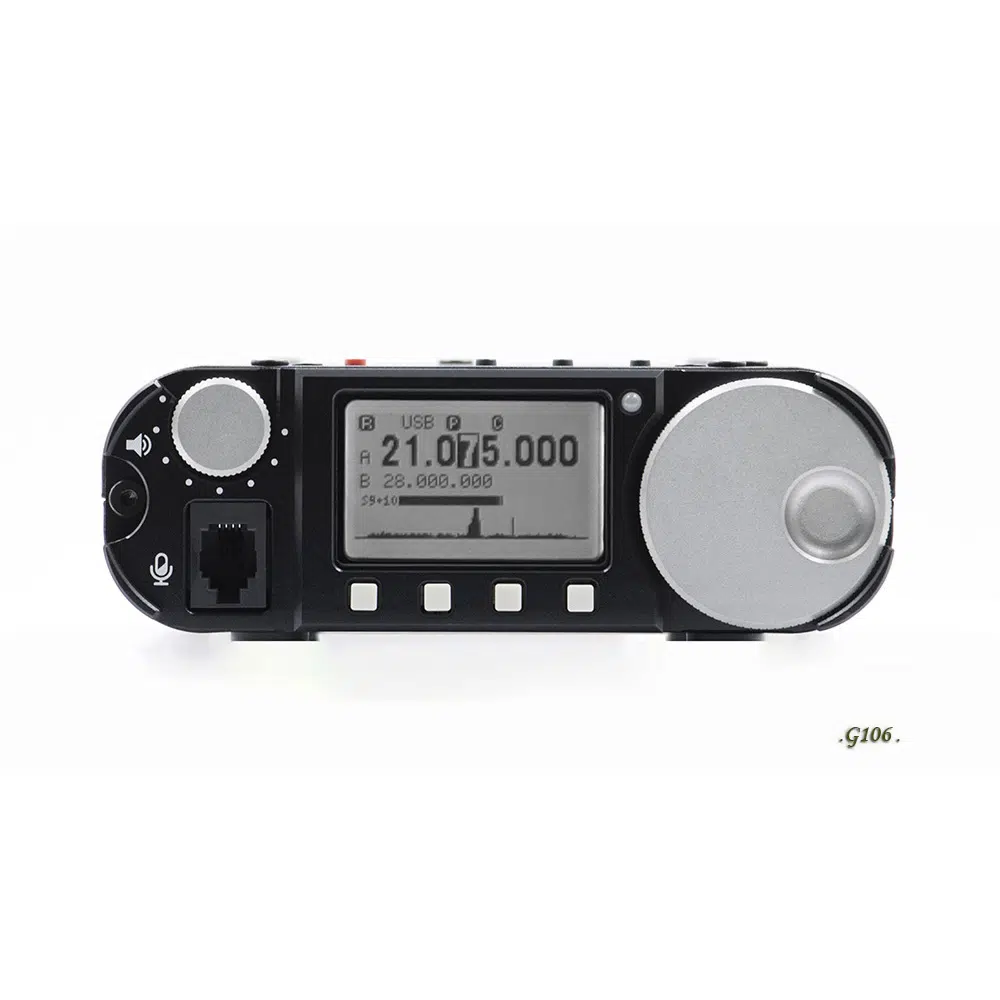

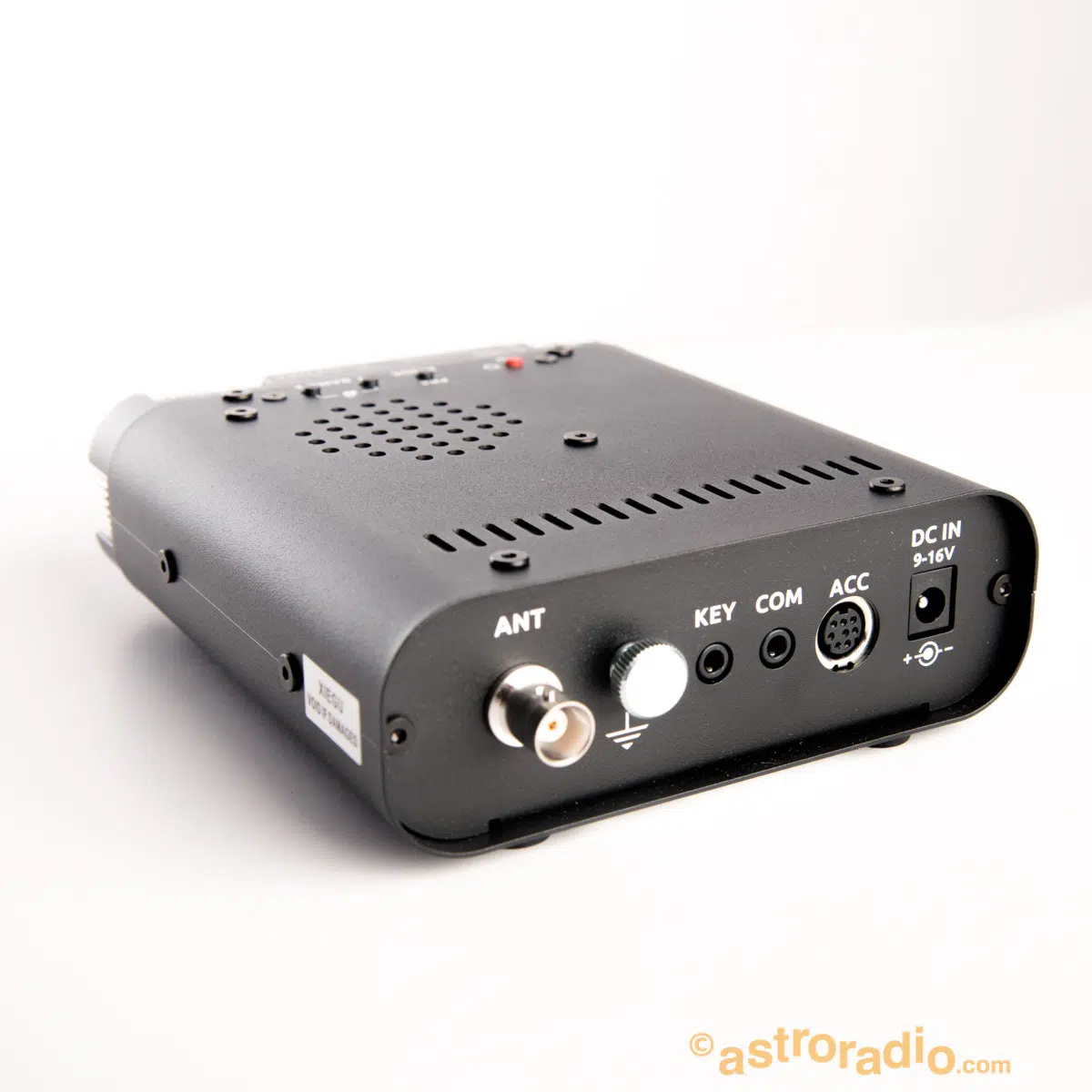

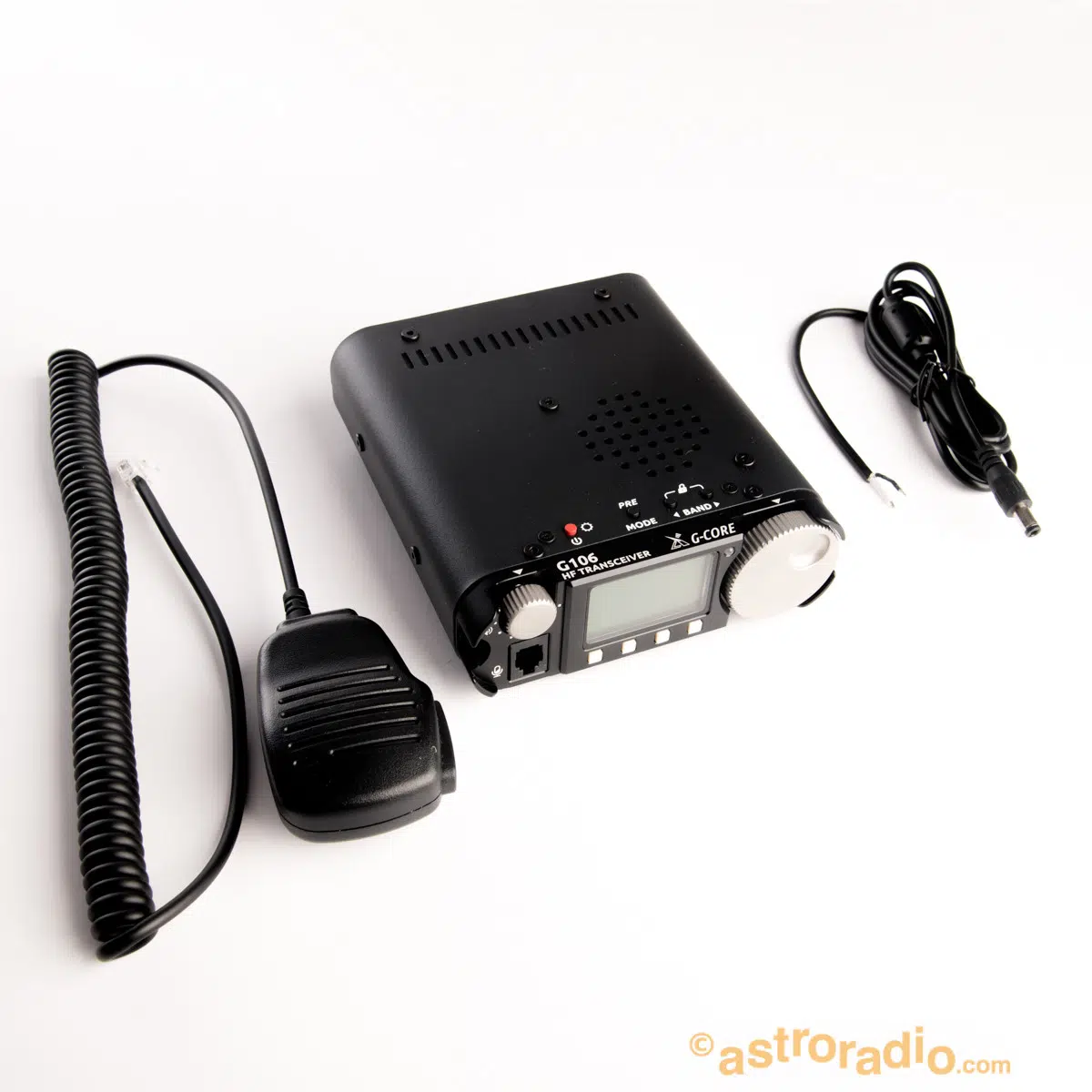

As an entry-level portable SDR transceiver, G106 will be a good helper for you to play CW and FT8
- High-performance SDR core circuit
- Compact and robust structure
- Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
- WFM broadcast receiving
- Shortwave full-range continuous receiving
- Amateur data communication available
- Computer online control available
Parameter:
Frequency range-receiving： 0.5MHz；30MHz
Transmitting frequency 3.5~3.9MHz；5.3515~5.3665MHz；7.0~7.2MHz； 10.1~10.15MHz；14.0~14.35MHz；18.068~18.168MHz；21.0~21.45MHz； 24.89~24.99MHz；28.0~29.7MHz
Range of working temperature
0C°—55C°
Frequency stability ±1.5ppm within 10~30min after startup；@25°C: 1ppm/hour
Receiving sensitivity CW: 0.25uV @10dB S/N；SSB: 0.5uV @10dB S/N；AM: 10uV @10dB S/N
Transmitting power: ≥5W @13.8V DC
Transmitting spurious suppression ≥50dB
Audio output power 0.3W
Working Mode CW,AM,SSB,；WFM(For receiving only）
Operating voltage
9~15V DC
Standby current 0.37A @Max
Transmitting current 2.8A @Max
Impedance 50Ω
Dimensions 120*40*135 (mm)
Weight About 720g (only host)
