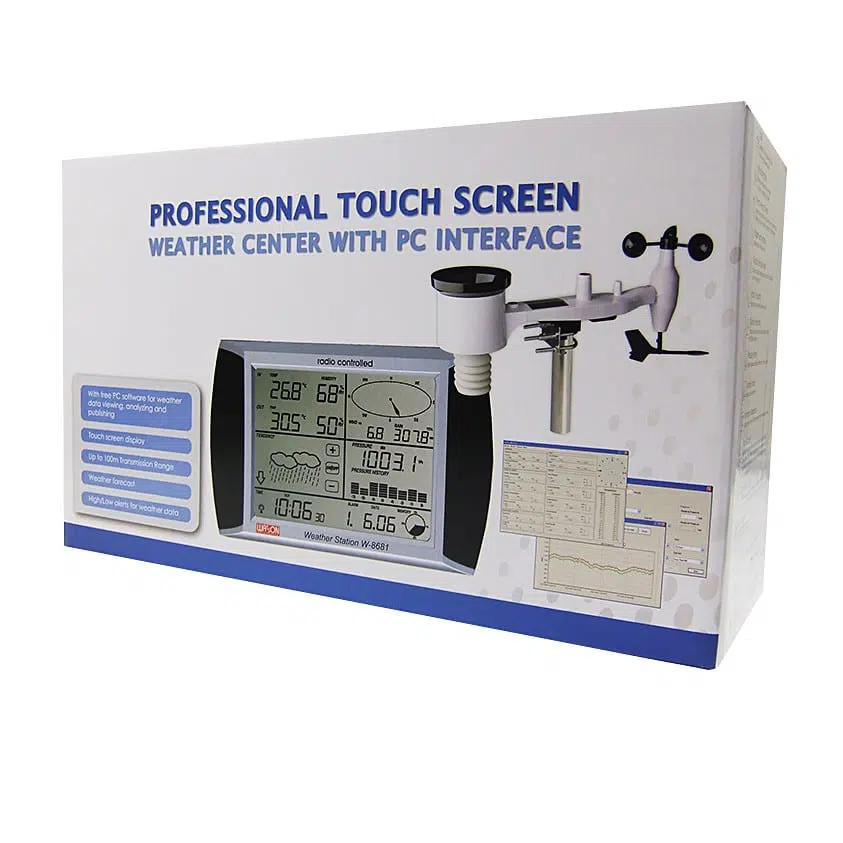

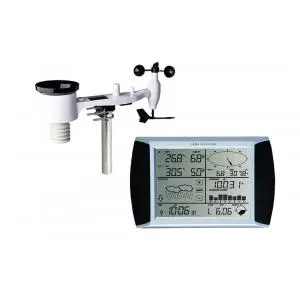

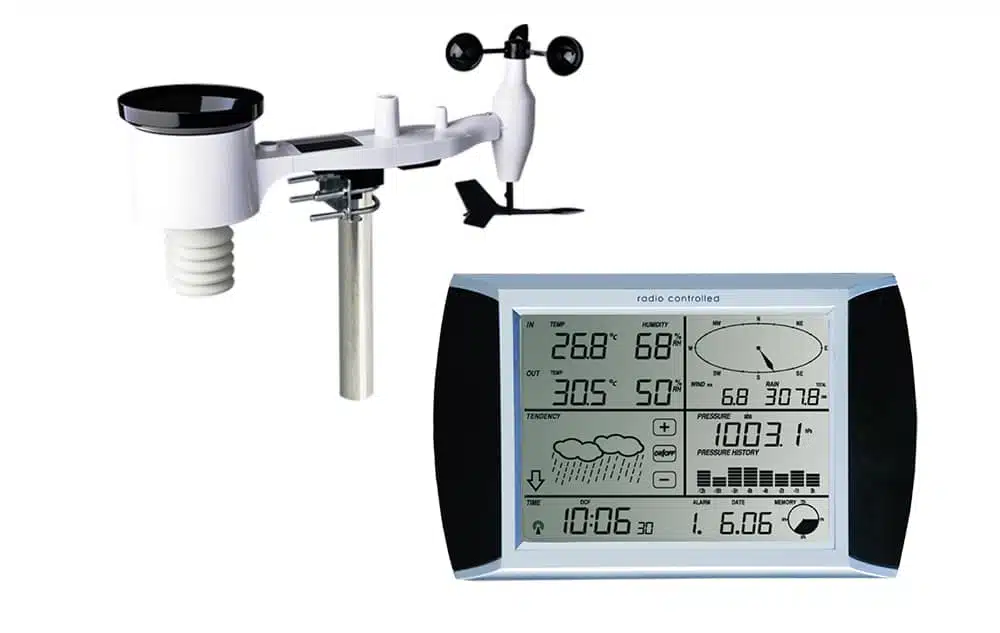

Weather Station W-8681 MKII

with LCD touch screen

Includes everything you need except batteries. Communication between the sensors and the central unit is wireless with a range of +50 m. The LCD touch screen allows a very simple operation of the equipment, indication of internal and external temperature, wind speed and direction, precipitation level, internal and external humidity, barometer, weather forecast and alarms.
USB connection to the computer and control program included.

LCD touch screen 23 x 14.5 x 3.5cm

Radio-controlled clock.

Anemometer

Rain gauge

Outdoor thermometer cables and brackets included

CD with software and user manual

This Weather Station is a high-quality, easy-to-use weather monitoring system that measures, displays and records climate data from both inside and outside. In addition to the values of temperature, humidity and atmospheric pressure inside, the external sensor takes the data of temperature and humidity, in addition to wind and rain. These units work by wireless transmission to the base station.

After installing the program “EasyWeather” from the CD-ROM. your PC can display all the data both inside and the base station receives from the sensors located outside. To work, simply one with the USB cable supplied the base station and the PC. Thereafter, you can follow the current and historical information of the time at the touch of your fingers.

System Requirements
To install “EasyWeather” software on your PC, the minimum requirements are:
Operating system Windows NT4 (Service Pack > =6a), Windows 2000, Windows XP.
Internet Explorer 6.0 or higher.
Processor: Pentium III 500 MHz or higher.
Memory: at least 128 MB, 256 MB recommended.
CD-ROM
USB port to connect to the base station.

Specs

External data

Open field range: 105 m
Frequency: 868 MHz (Europe)
Temperature range: -40 ºC to +65 ºC (OFL sample outside this range)
Temperature resolution: 0.5 ºC
Relative humidity range: 1% — 99%
Presentation of rainfall volume: 0-9999 mm (OFL sample outside this margin)
Resolution: 0.3 mm (if the volume of rain < 1000 mm)
1 mm (if the volume of rain exceeds 1000 mm)
Wind speed: 0-160 KMh (OFL sample outside this margin)
Humidity measurement range: 48 sec.
Water test level: IPX3

Internal data

Pressure and temp measurement interval: 48 sec.
Indoor temperature range: 0ºC to 50ºC (OFL sample outside mangen)
Resolution: 0.5 ºC
Relative humidity range: 1% — 99%
Resolution 1%
Atmospheric pressure range: 27.13 inHg – 31.89 inHg
Resolution: 0.01 inHg
Alarm duration: 120 sec.

POWER SUPPLY

Base station: 3 x 1.5 V alkaline batteries, LR6 size (AA)
Battery life: Minimum 12 months

Remote sensor: 2 x 1.5V alkaline batteries, LR6 size (AA)
Battery life: Minimum 14 months with thermal and hygrometric sensor

Links programs compatible with this station:

Wheather Display
Cumulus
Estación W8681 online
WeeWX
