HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
- 1 MHz to 6 GHz operating frequency
- half-duplex transceiver
- up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- compatible with GNU Radio, SDR#, and more
- software-configurable RX and TX gain and baseband filter
- software-controlled antenna port power (50 mA at 3.3 V)

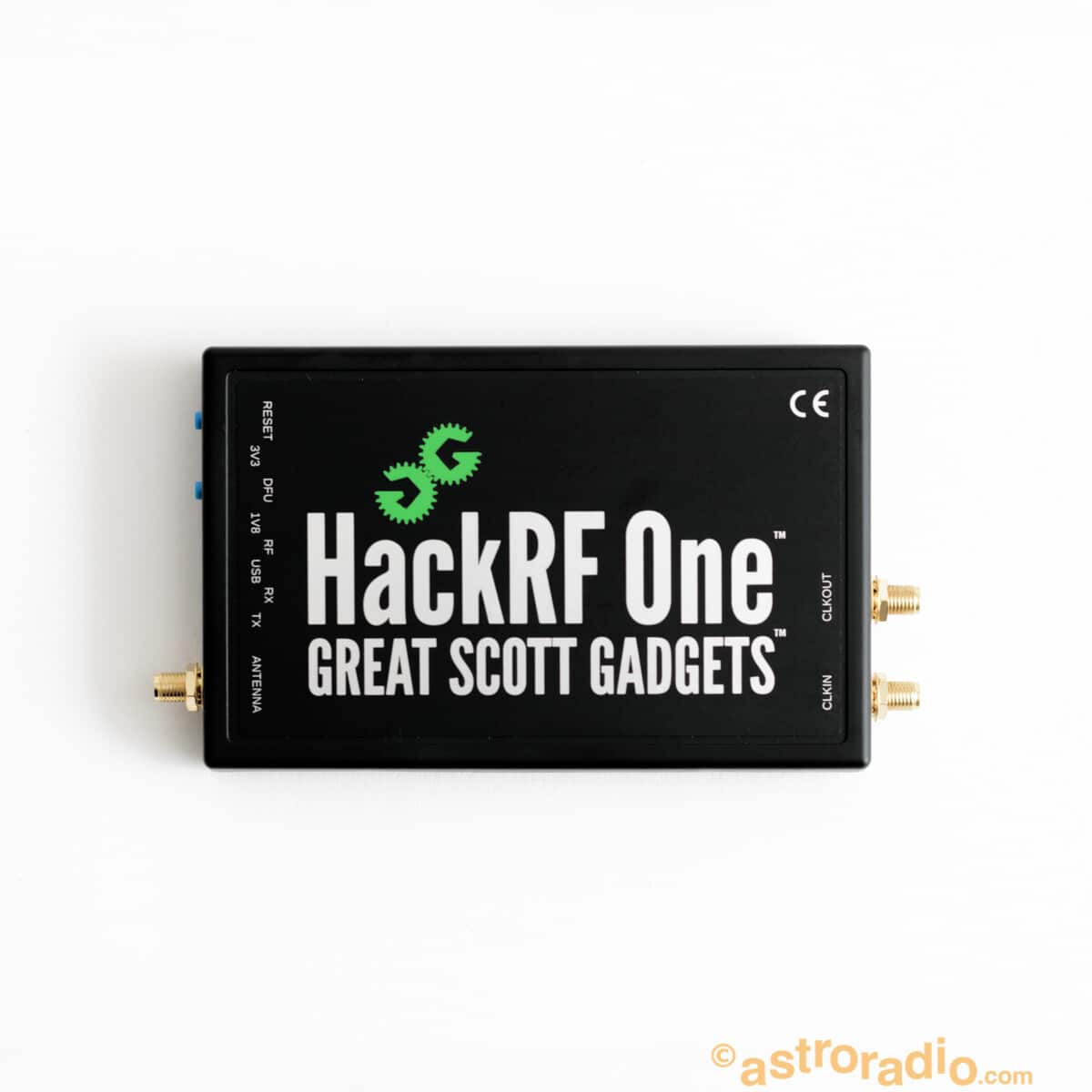

- SMA female antenna connector

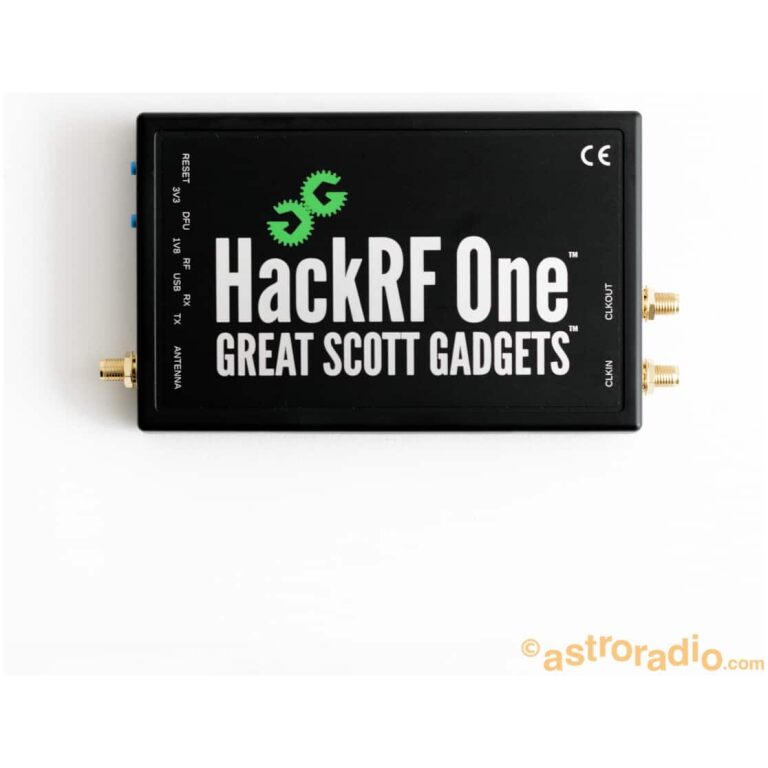

- SMA female clock input and output for synchronization
- convenient buttons for programming

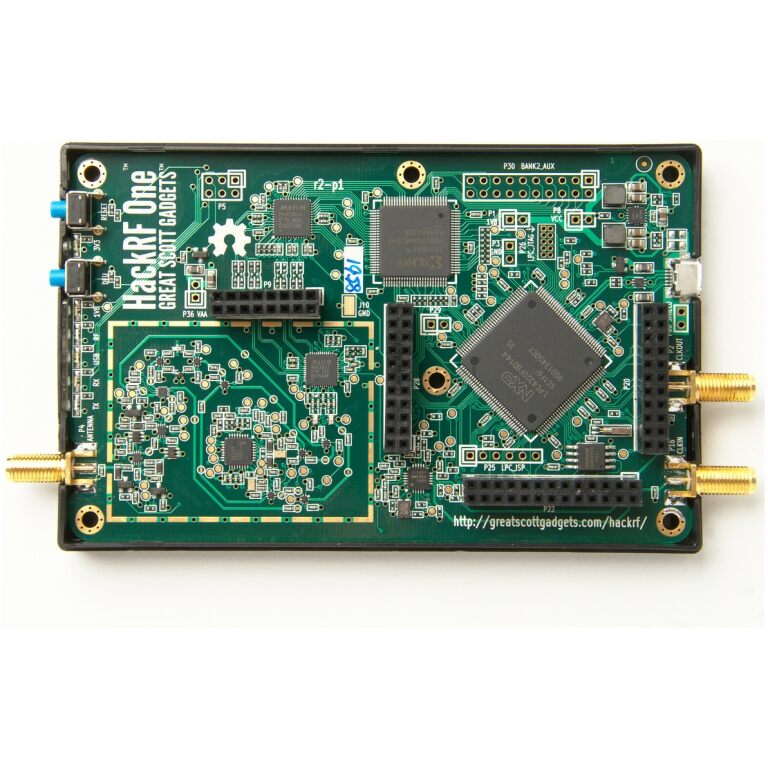

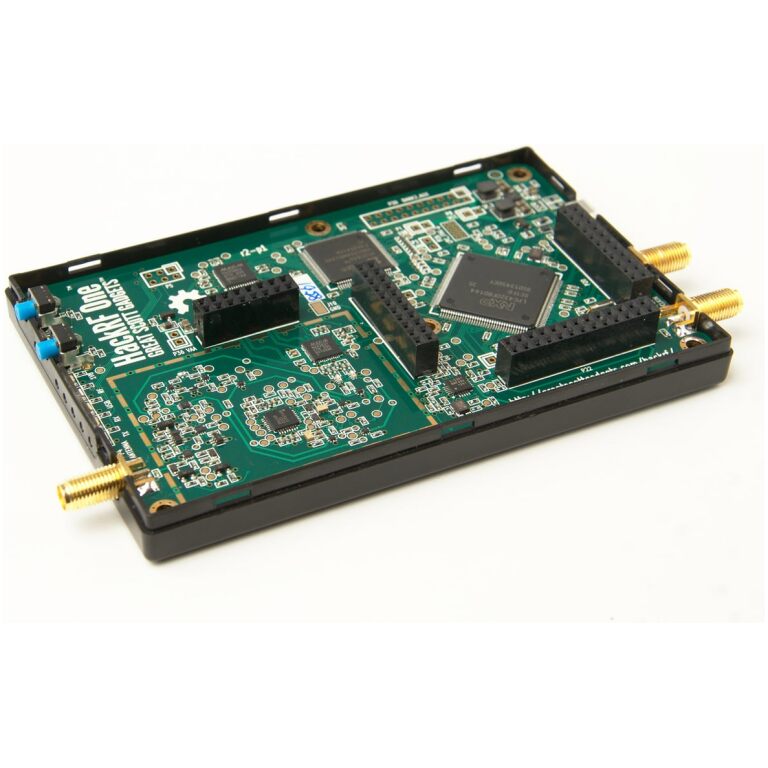

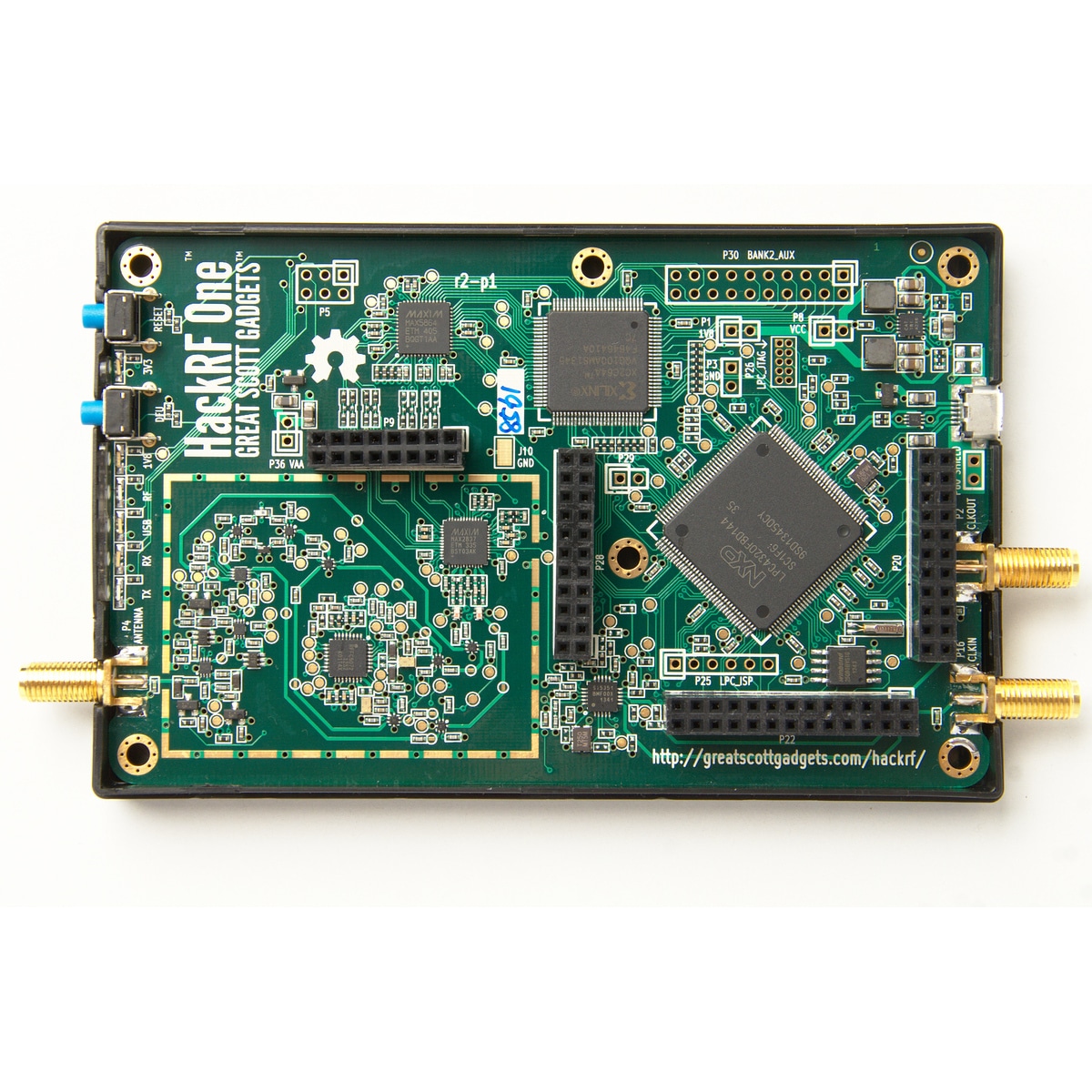

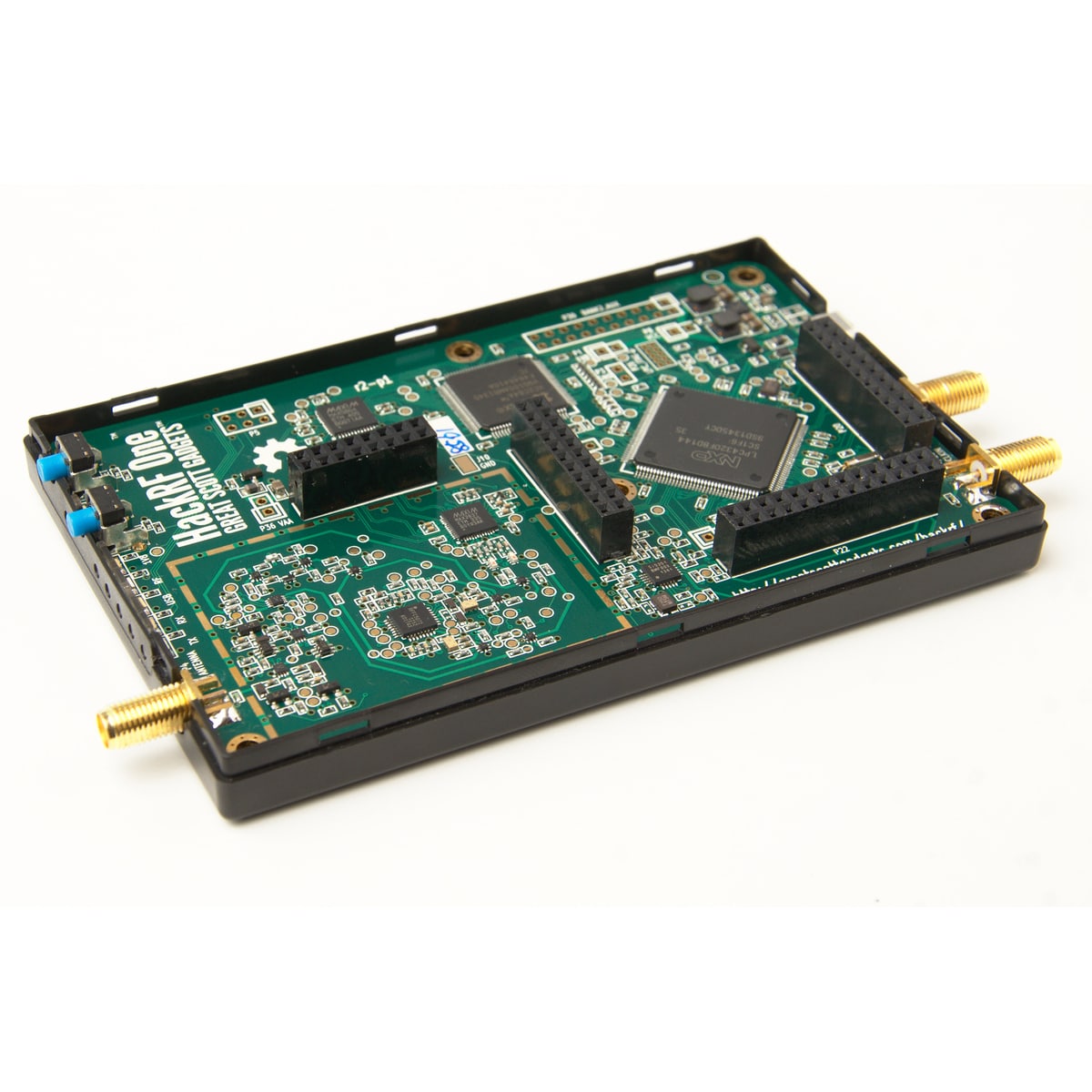

- internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- open source hardware

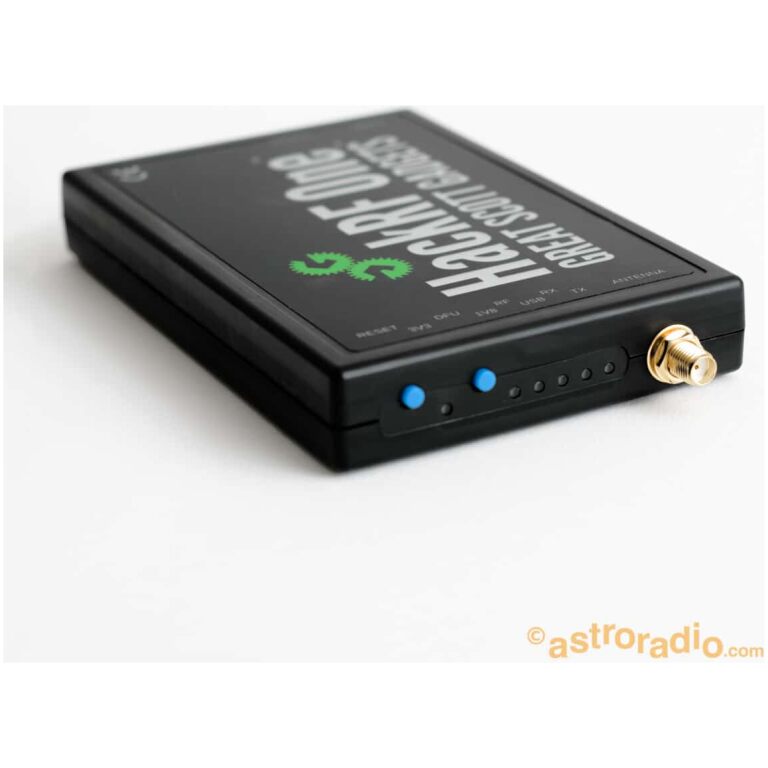

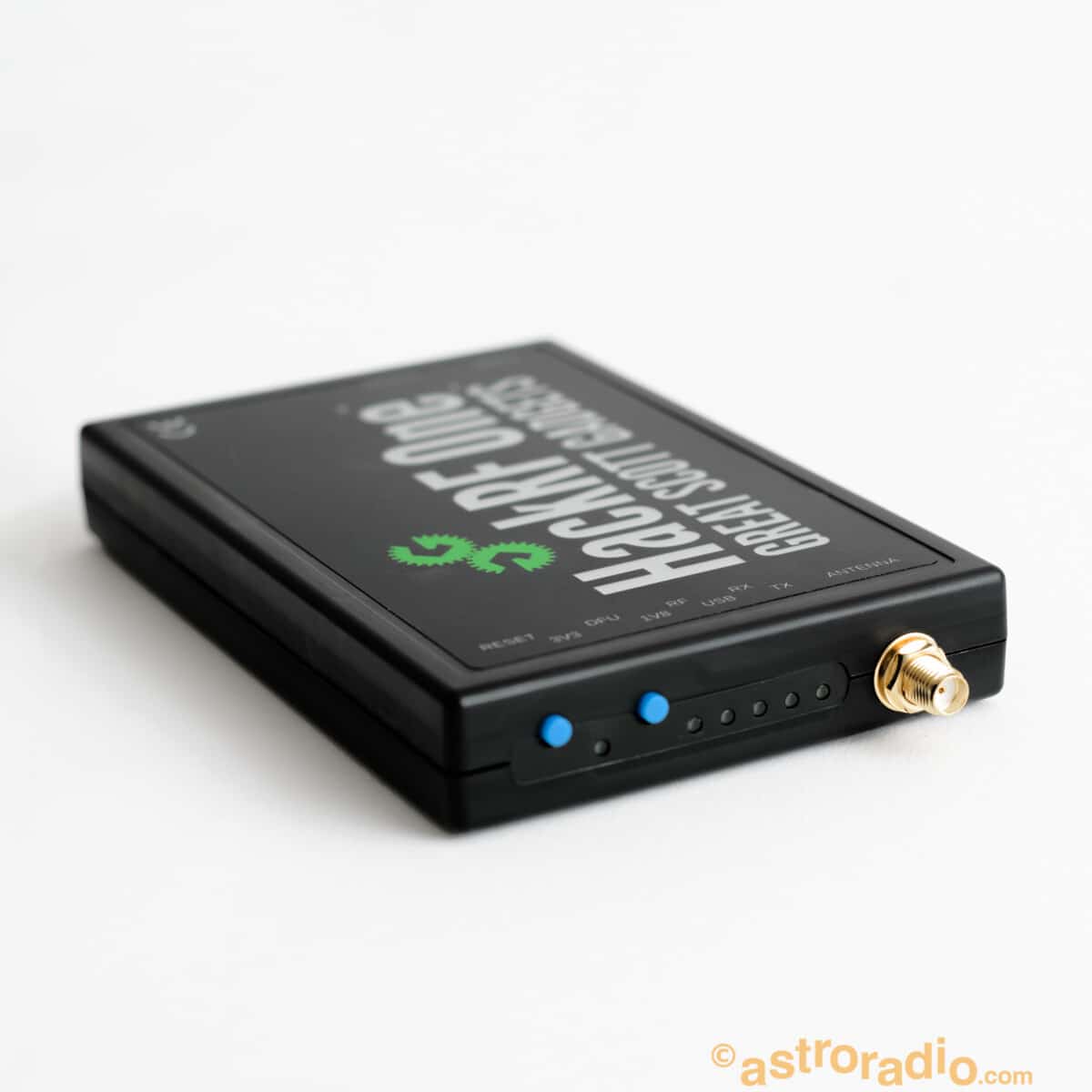

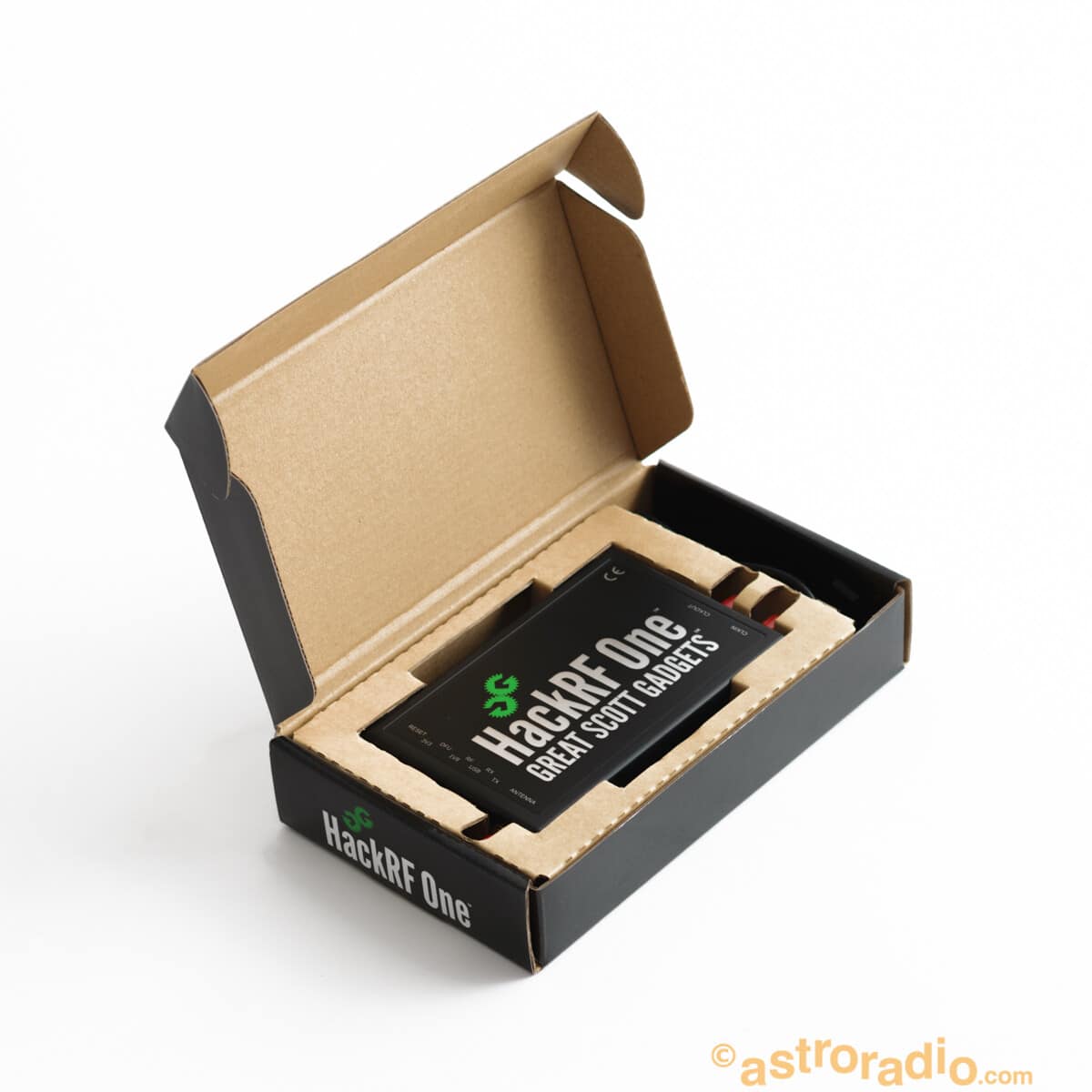

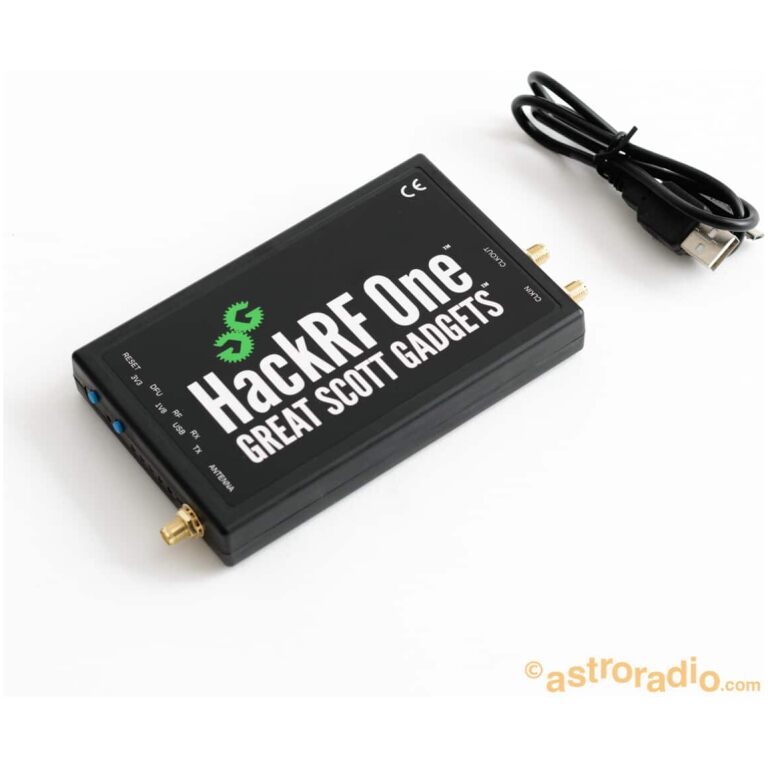

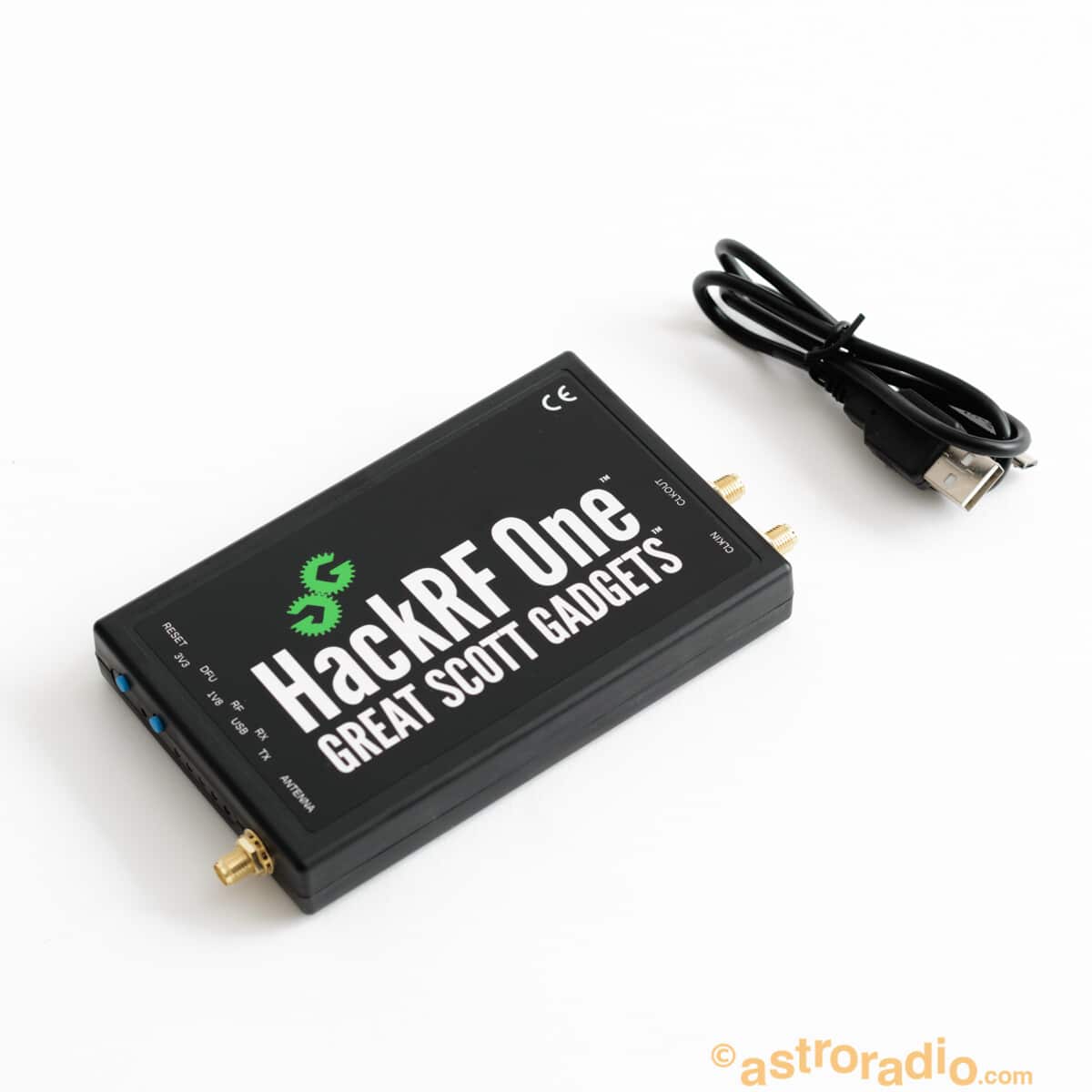

HackRF One has an injection molded plastic enclosure and ships with a micro USB cable.
HackRF One is test equipment for RF systems. It has not been tested for compliance with regulations governing transmission of radio signals. You are responsible for using your HackRF One legally.
João P. (verified owner) –
Awesome product, Very high quality.
Had it integrated with H4M porta pack and worked good, had to flash hackrf with mayhem porta pack version, then plug h4m porta pack with sd card preped and calibrate touch.
Gabriel B. (verified owner) –
un gran SDR principalmente para el desarrollo, experimentación y pruebas.
El envío inmediato, todo correcto.
