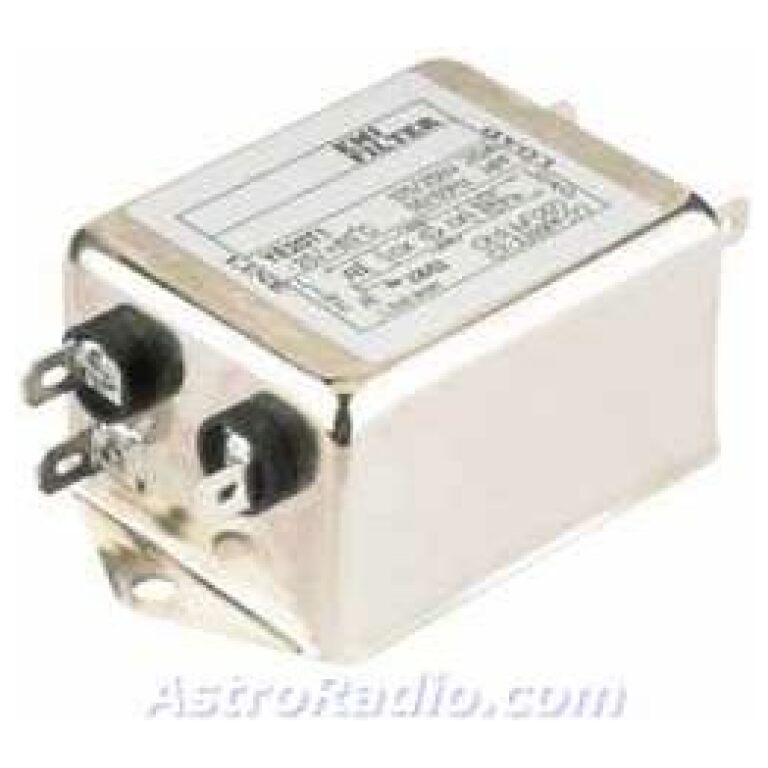

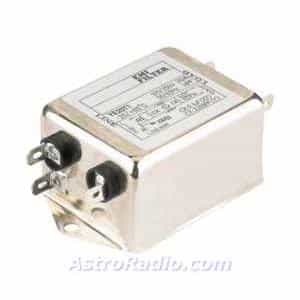

FILTRO doble DE RED YE20t1 20A

IVA 21% inclòs

30,00€

Filtro de red YE20-T1 1. YunPen

Características: gran atenuación en modo normal i modo común Diseño compacto Terminales faston de conexión 2.

Especificaciones:

ITEM MODEL YE20T1L2/YEA20T4L2

RATED VOLTAGE 250V AC

RATED CURRENT 20A

LEAK CURRENT 0.8mA MA

Enviar-me una notificació quan el producte torni a estar en estoc.

Filtro de red YE20-T1

1. Características:

2. Especificaciones:

ITEM MODEL	YE20T1L2/YEA20T4L2
RATED VOLTAGE	250V AC
RATED CURRENT	20A
LEAK CURRENT	0.8mA MAX 250V,50HZ
TEST VOLTAGE	LINE TO LINE LINE TO GROUND	1450V DC 2250V DC
INSULATION RESISTANCE	100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE	0.05 ohm MAX
TEMPERATURE RISE	30C MAX
OPERATING TEMPERATURE	-25 ~ +85C
ATTENUATION	NORMAL MODE 25dbMIN COMMON MODE 25dbMIN	0.68 ~ 50MHZ 0.40 ~ 50MHZ
CX	0.1uF*3
CY	3300pF*2
INDUCTANCE	0.5mH*2

3. Atenuación ruido(dB)

COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE	CURRENT	FREQUENCY-MHZ
RATING	0.15	0.5	1.0	5.0	10.0	30.0
YE20T1L2/YE20T4L2	20A	14	39	49	63	59	38
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YE20T1L2/YE20T4L2	20A	13	25	57	64	57	45
